Access web journeys in the native NHS App

Work in progress

How to adapt your web journey so users can access it in the native NHS App, using a web overlay.

Overview

For the first native NHS App release, users will start their journeys on native menu screens. If they then select a website-hosted NHS App service from one of those menu screens, it will open in a web overlay.

Video showing a user entering and interacting with a full-screen web overlay from the native app.
This approach tested well in user research and helped users get their bearings.

In the longer term, our ambition is to make the app more fully native. This may mean rebuilding certain web journeys using native code in the future.

Which type of overlay to use

Custom web view

Use a custom web view if you need to customise or control how a journey is presented in the NHS App.

This applies to:

  • website-based app journeys – such as requesting a repeat prescription or viewing test results
  • all NHS website journeys – whether they are authenticated, such as 111 online, or unauthenticated, such as Health A to Z and App help
  • authenticated third-party journeys – such as online consultations, Wayfinder integrations and Be Part of Research
  • the "Give feedback on the NHS App" survey – which contains links to the NHS website that we need control over

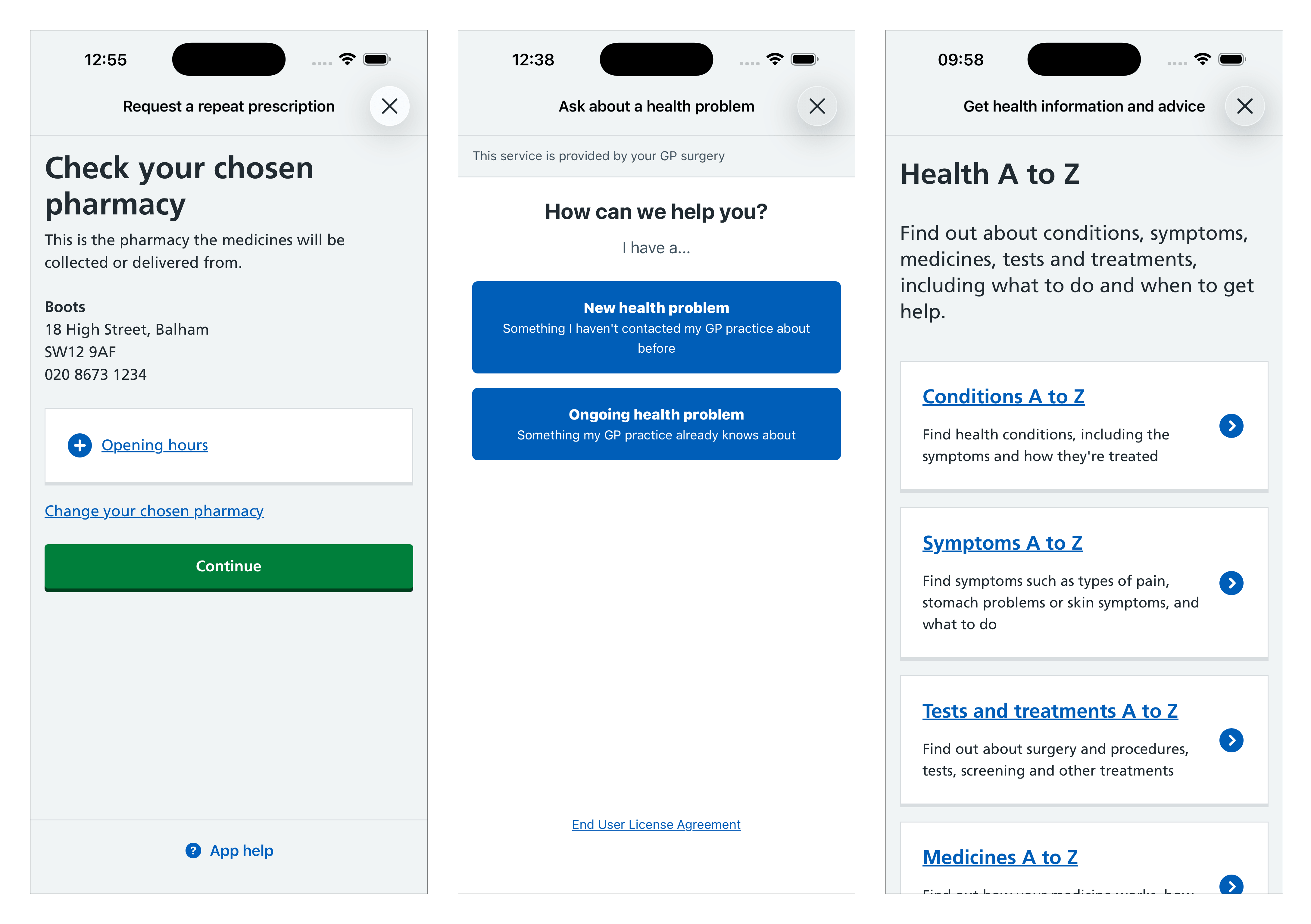

Examples of a custom web view being used for repeat prescriptions, online constulations and NHS website journeys.

Web browser overlay

Use a standard web browser overlay (Safari View or Chrome Custom Tabs) for journeys you do not need to customise or control.

This applies to unauthenticated, third-party information websites. For example, online pharmacy websites.

Examples of Safari View being used for the external websites Bamboo Pharmacy, British Heart Foundation and a Department of Health PDF.

How to adapt your journey for a custom web view

Add a title to the toolbar

Give the web view a title that matches the name of the service. Check with a content designer, but this will usually match with the card link that leads into the service. For example, “Request a repeat prescription”.

Hide elements that could confuse users

On the first page of the journey, hide the back button. Include the back button on every other page.

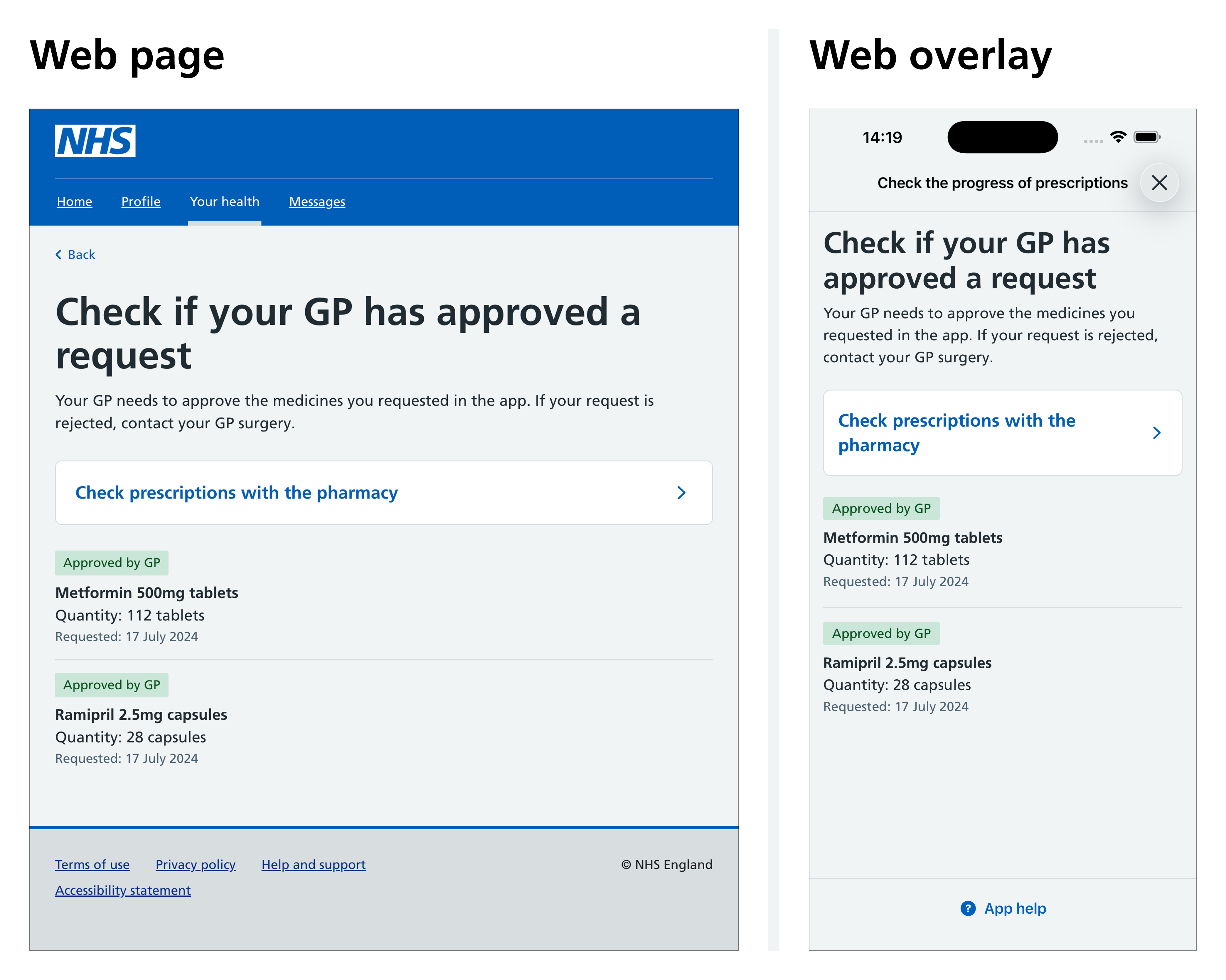

An example showing how the NHS website header and footer are visible in the web browser version of the app, but hidden when presented in the web overlay.

Work with designers to check for any other website elements that may be better removed or hidden from the custom tab. For example, links to external website that may lead users stranded outside of the main journey.

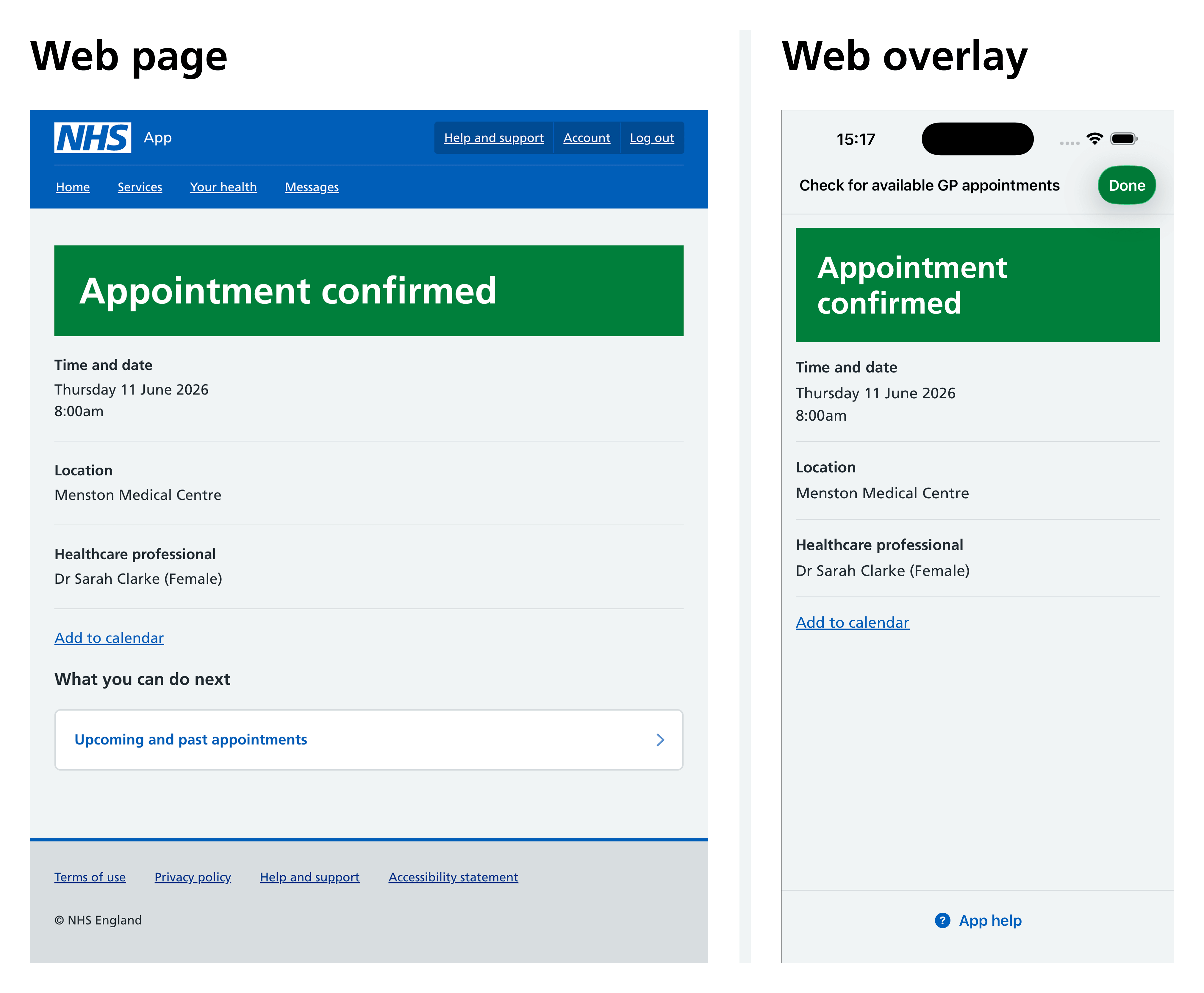

Example of an appointment confirmation screen. An upcoming and past appointments link is visible on a web page but hidden in the custom web view.
In this example, the "Upcoming and past appointments" link has been hidden so users do not navigate deeper into the overlay and get lost. When a user selects "Done", they return to the native Appointments screen which links to "Manage GP appointments".

Hiding website headers can help reduce users' confusion about where they are. On NHS website pages, we hide the NHS website header (including the search bar) and the breadcrumb links at the top of the page. This prevents users from navigating to other parts of the NHS website and getting lost, which we've seen happen often in past user research.

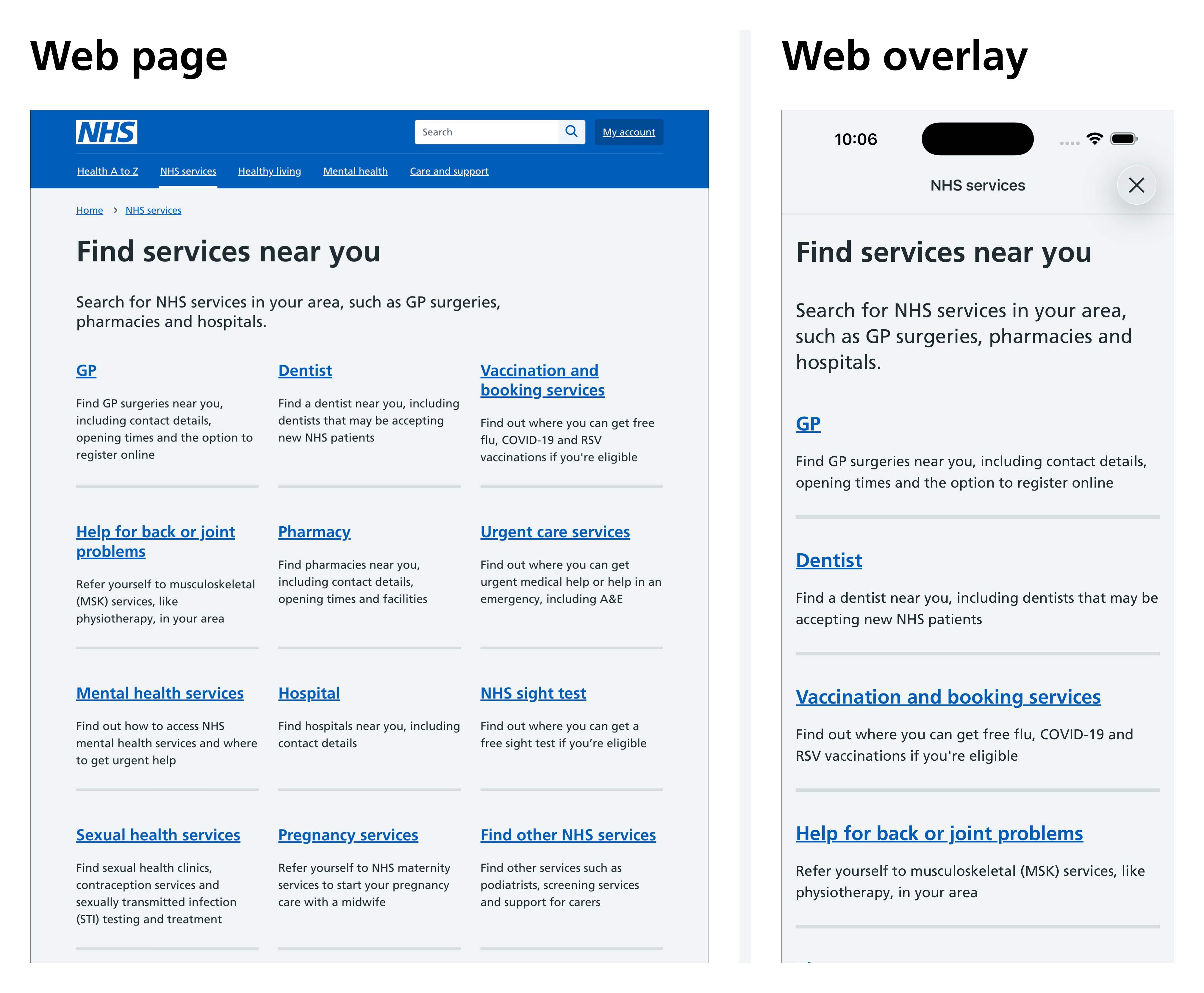

Example of the Find services near you page on a website, and then the same page with elements hidden in a custom web view.
An NHS website example where the header and bredcrumb link have been hidden.

Help users exit the overlay

Include an X button in the toolbar so that users can exit easily.

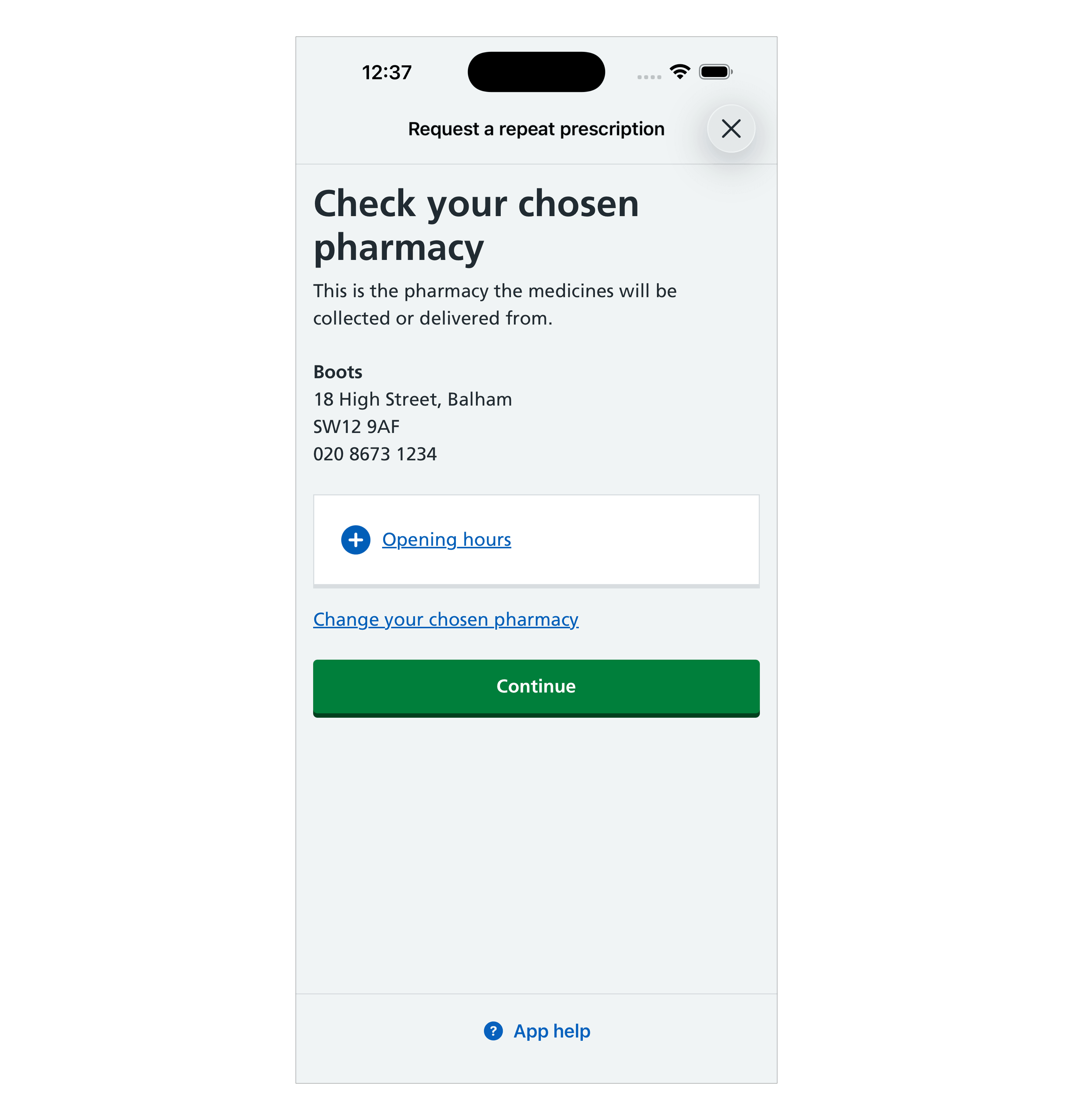

Video showing an overlay opening and then closing when X is selected.

This applies on every page apart from the final screen of transactional services, where you should include a “Done” button instead.

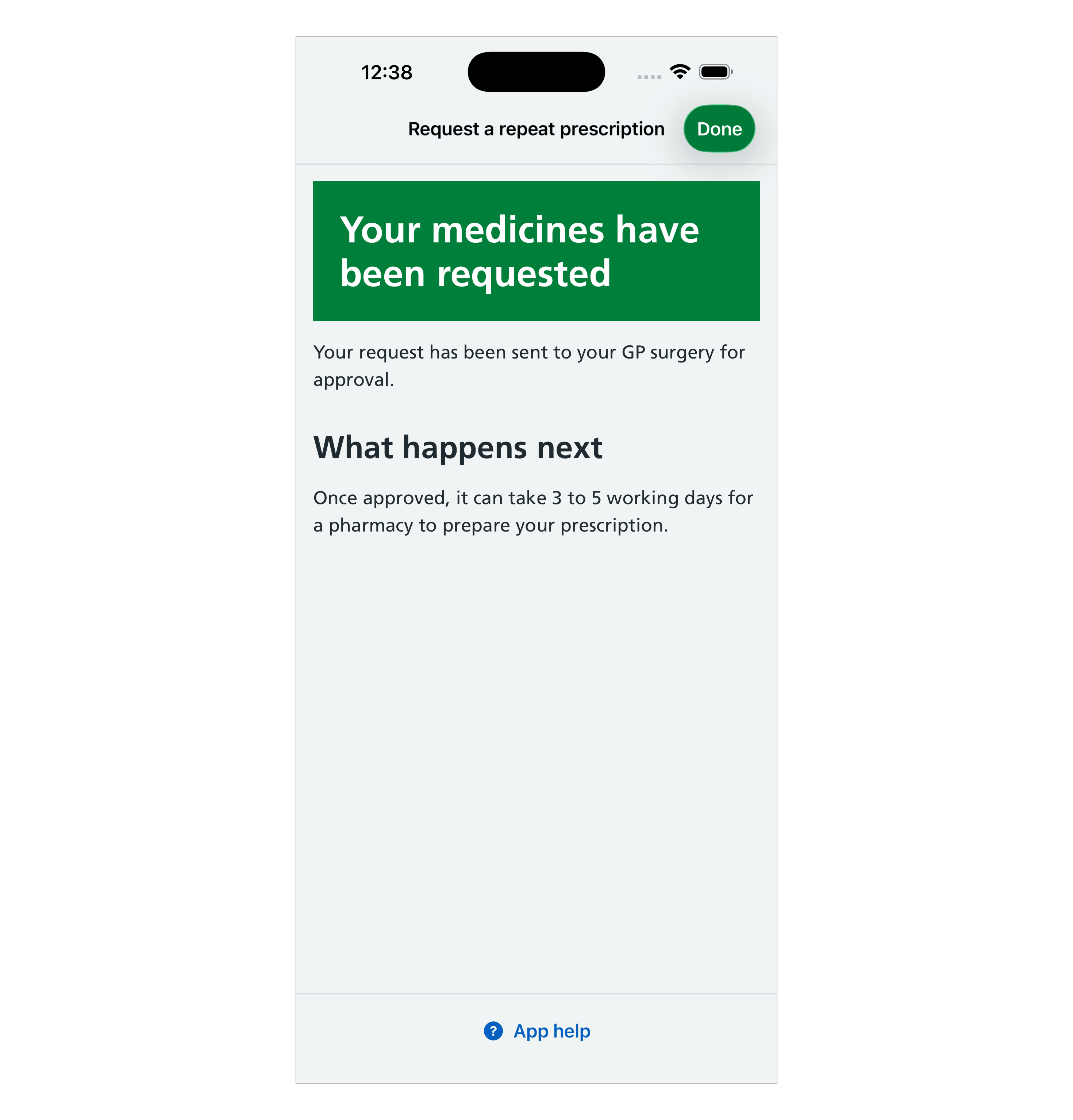

Video showing a confirmation screen closing when done is selected.

If users select the X at a point after they may have started entering data or making choices, show an alert to make sure they really want to close the overlay.

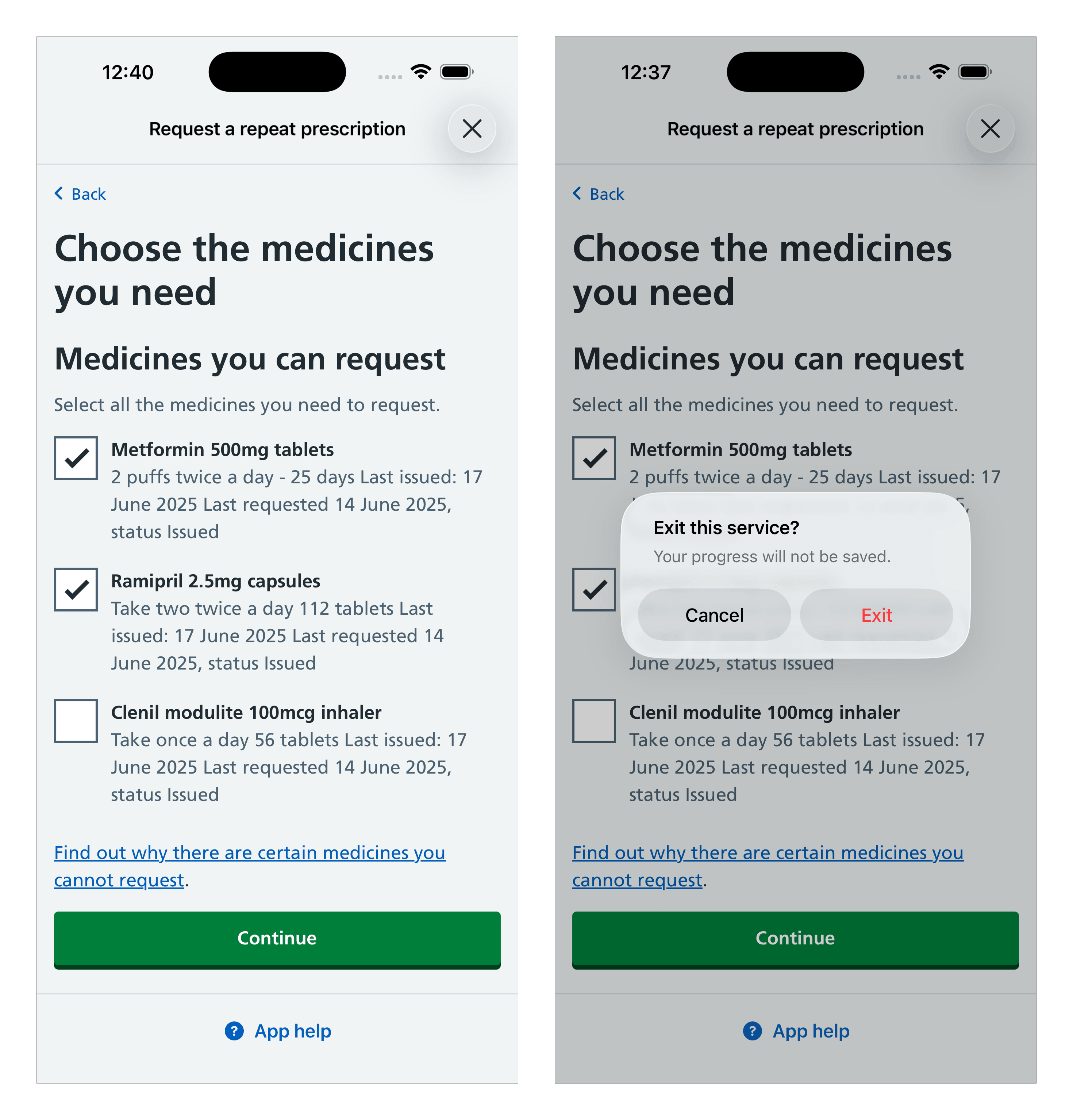

Video showing an alert overlaid on a screen, warning users their progress will not be saved if they exit.

Do not include an alert:

  • on journeys with no data input
  • on the first page of journeys, at which point users will not have entered any information yet

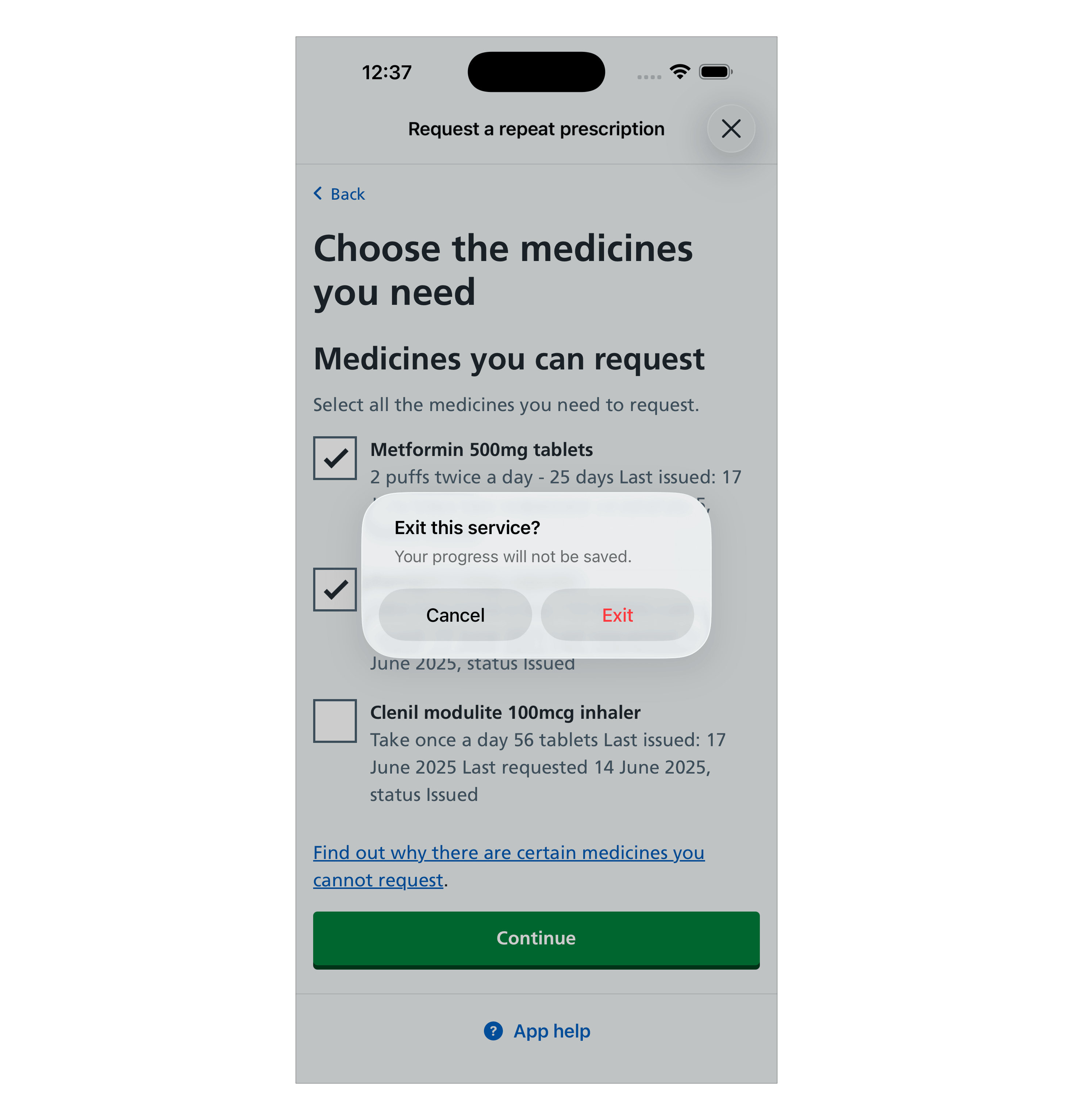

Video showing the alert content. The text is 'Exit this service? Your progress will not be saved' and there are buttons to cancel or exit.

Alerts should consistently use the content shown in the example above, which adheres to iOS and Android platform design guidance.

While users are completing their main task in a full-screen overlay, they may select links from within that journey that go elsewhere. Use a sheet to open these links.

A sheet is a partial overlay that slides up over the main journey, keeping it visible underneath. This shows users they have taken a temporary step, which they can dismiss to get back to where they were.

The sheet we use to open NHS website pages is also a custom web view.

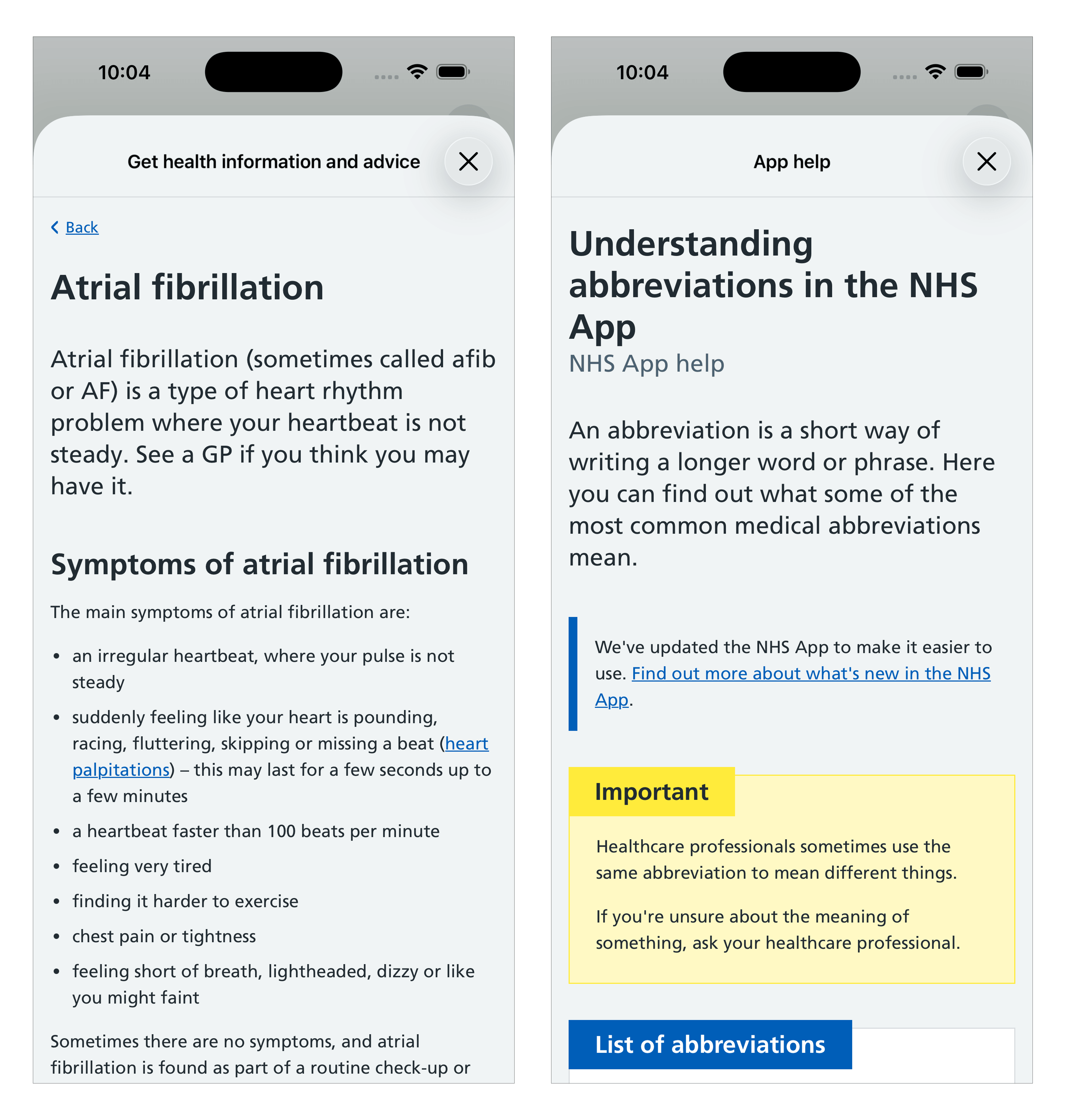

Video of a user who is already in a full-screen custom web view selecting an NHS website. It opens in a sheet the slides over the top of the full-screen overlay.

For links to third-party websites or services, the sheet should usually be a web browser overlay (Safari View or Chrome Custom Tabs) instead of a custom web view.

The principle is the same. The sheet keeps the page they were reading underneath, so they can read the external site and dismiss it to return.

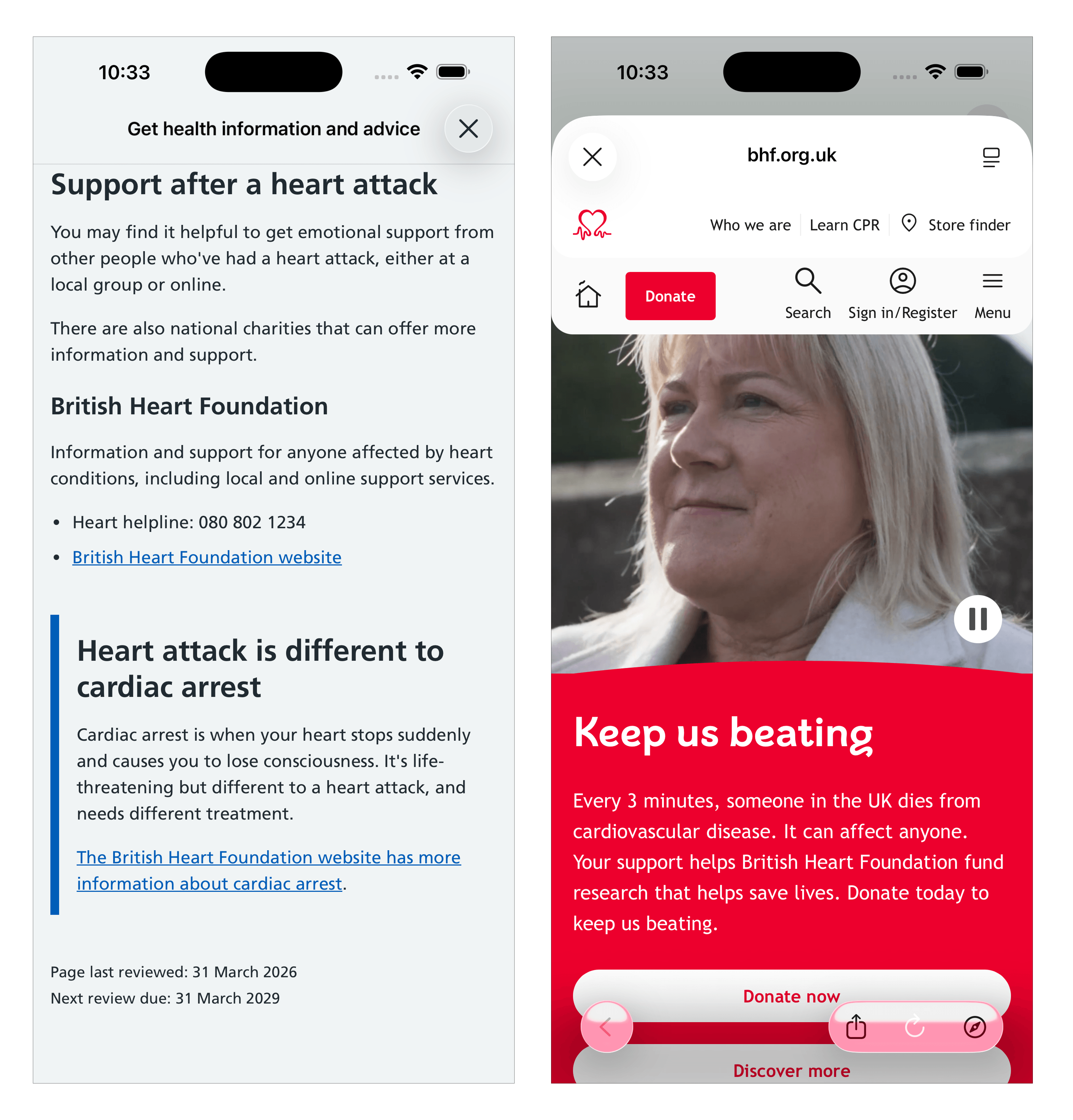

Another video showing a sheet in action, but this time the user is following a third-party link which opens as a sheet in a web browser overlay.
In this example, the user is in the "Get health information and advice" overlay and selects the British Heart Foundation website link. Because it's an external site, it opens at bhf.org.uk in the web browser overlay, shown as a sheet over the page they were reading.

An exception is the "Give feedback" journey. Although it's an unauthenticated, third-party journey, we use a full-screen custom web view rather than the web browser overlay. That lets us control how the NHS website links within the journey open. We open those links as custom web view sheets.

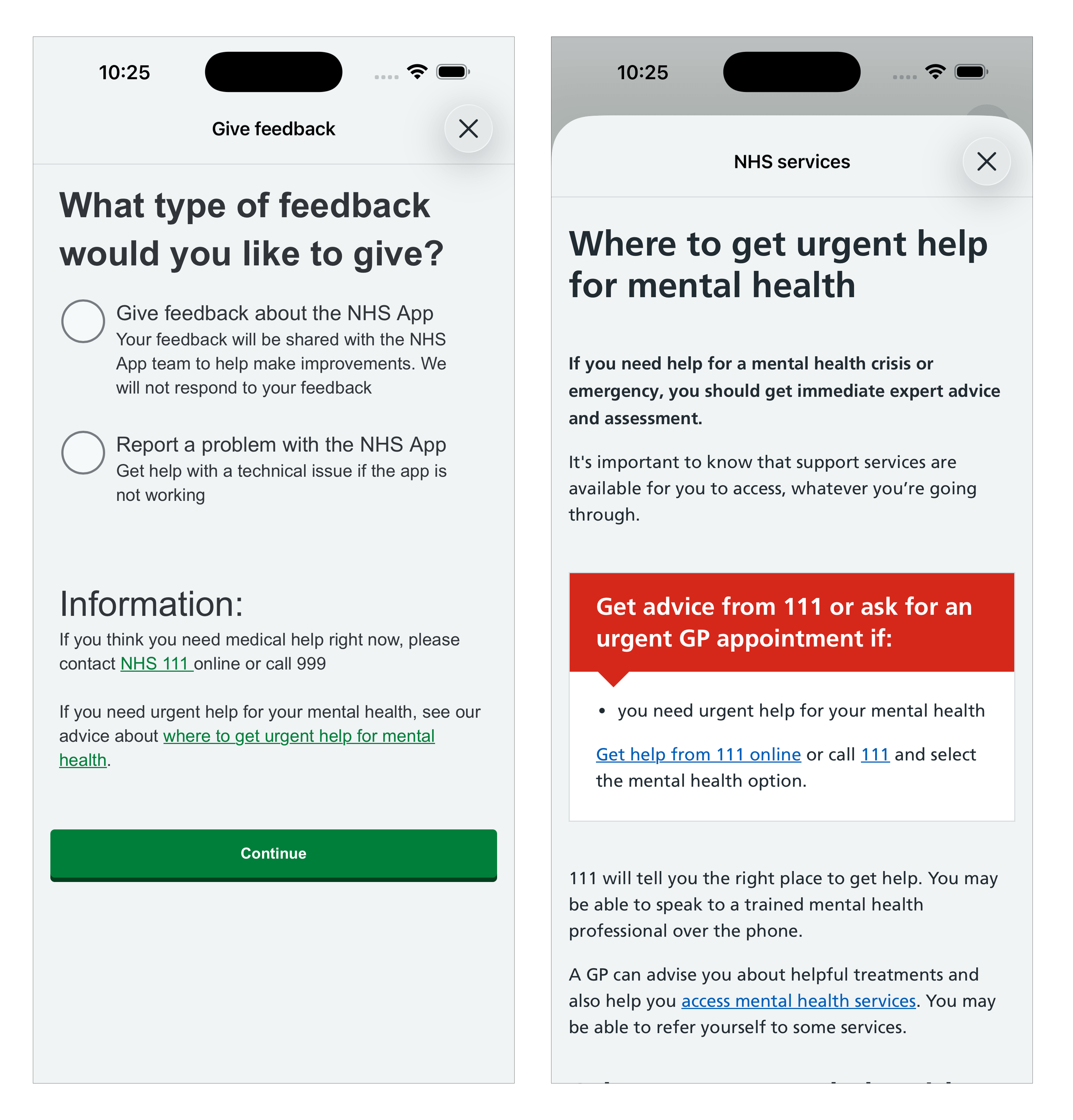

A video showing the Qualtrics survey opening in a full-screen custom web view, and an NHS website link on that journey opening as a sheet in a custom web view overlay.
This example shows the "Give feedback" survey journey.

Include an app help button at the bottom of the custom web view

Users may get stuck or have questions while they complete website-based app journeys, such as requesting a repeat prescription or booking a GP appointment.

Use the bottom of the custom web view to continually display an app help button during these journeys. For information about routing the button to a relevant help page, see our guidance on giving users access to help while they use the NHS App.

The bottom of the custom web view. It has a button reading app help with a question mark icon.

Help improve this pattern

The NHS App design system team would like to hear:

  • how you have used this pattern in your service
  • any feedback you have about its usage, for example accessibility or ideas for improvement

Add these comments to the 'Access web journeys in the native NHS App' discussion on GitHub.
